TP77 Bill Acceptor

Overview
Model Number : TP77
Color : black
Power supply : 12V DC or 120V AC
Weight : 0.7KG
Acceptance rate : 96%
Acceptance Speed : 20 bills per minute
Use for : Game machine,vending machine and so on.
Suitable for below countries:
Uruguay, Cambodia, Korea, Thailand, Lao, India, Japan, Uzbekistan, Israel, Turkey, Kazakhastan, Guinea, Uganda, Ghana, EURO

定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Bill Acceptor、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,SimulatorMicro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

TP77 Bill Acceptor
Overview
Model Number : TP77
Color : black
Power supply : 12V DC or 120V AC
Weight : 0.7KG
Acceptance rate : 96%
Acceptance Speed : 20 bills per minute
Use for : Game machine,vending machine and so on.
Suitable for below countries:
Uruguay, Cambodia, Korea, Thailand, Lao, India, Japan, Uzbekistan, Israel, Turkey, Kazakhastan, Guinea, Uganda, Ghana, EURO



Technical Data:
1.Bills can be inserted 4-ways
2.Interface Pulse or RS232
3.Acceptance Rate 96 % or greater
4.Acceptance Speed Appox. 2 seconds
5.Power Sources DC 12V ± 5% Power consumption Standby : 210 ~350 mA,Operating : 2A ,Motor Lock : 2.2A
6.Software can be quickly updated through the built-in connector (Flash ROM).
7.The new anti-stringing function has 99.99% success rate.
8.Ultimate acceptance rates.
9.Superior security.
10.Fast, efficient bill handling.
11.Easy to remove/open/clean acceptor.
12.Auto self-adjusting sensor system.
13.Quick to update software (flash ROM).
14.Combines the bill handing and the advanced bill recognition system to increase acceptance rates and reduce jams.

bill acceptor

Pictures

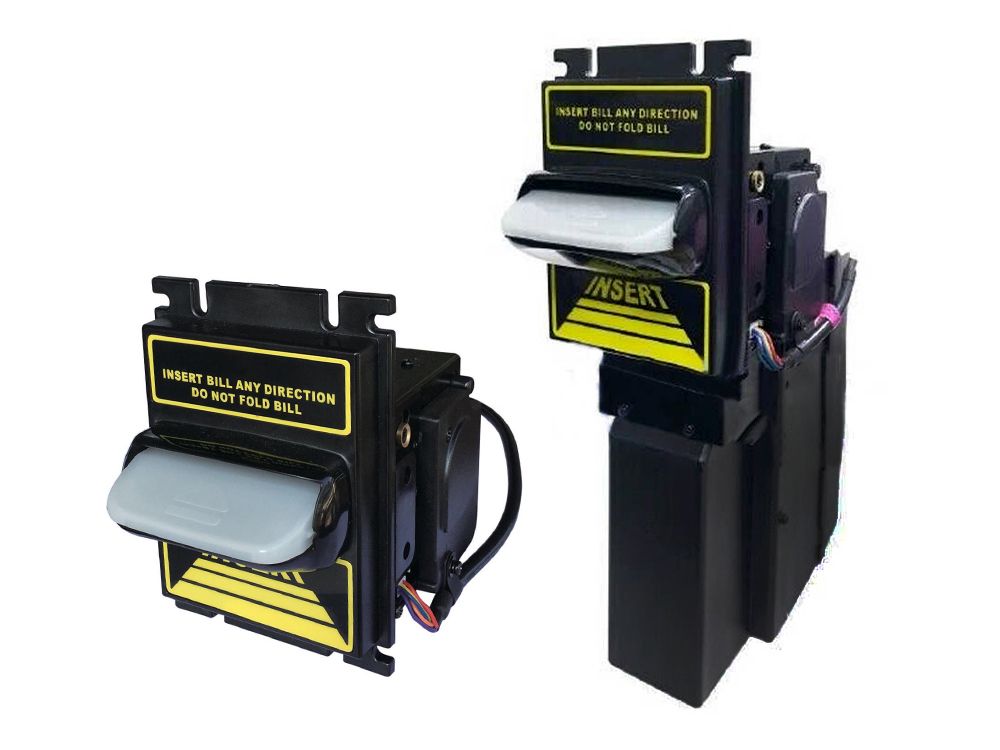

TP77 Bill Acceptor
