BV20 Bill Acceptor

Features:
1.Free firmware and dataset for new currencies and product improvements.
2.Exceptional value for the price of a coin Validator.
3.Simple, reliable, easy to use product.
4.Quick transactions with high acceptance rate of typically 99.8% using SPf technology.
5.No jams problem thanks to seamless note path.
6.Designed for easy installation and simple maintenance.



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Bill Acceptor、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

BV20-1 Bill Acceptor
The BV20 is a compact, light-weight bill acceptor ideal for amusement and low value vending applications. Proven field reliability, quick transactions and easy maintenance make the unit future proof. Exceptional value, the BV20 allows a bill acceptor to be installed for the same price as a coin mech.

BV20 is suitable for Amusement Machines, such as, kiddie rides, video games, pool tables or Low Value Vending Machines, such as, hot/cold drinks, medical items, newspapers, shoe shining.The BV20 Bill Validator / Note Reader is designed for easy installation in most machines. Interfacing the Validator is very simple with the choice of the following protocols: SSP, Pulse, Parallel, Binary, CCTalk, SIO, MDB, NIS, IF30, IF31, IF32.

Features:
1.Free firmware and dataset for new currencies and product improvements
2.Exceptional value for the price of a coin Validator.
3.Simple, reliable, easy to use product.
4.Quick transactions with high acceptance rate of typically 99.8% using SPf technology.
5.No jams problem thanks to seamless note path.
6.Designed for easy installation and simple maintenance.

Technical Data:
1.Accepts notes in just 2 seconds.
2.Weight: 0.3kg
3.Optical anti-strim beam.
4.Supporting all standard protocols.
5.Power Supply: 12VDC +/- 10%

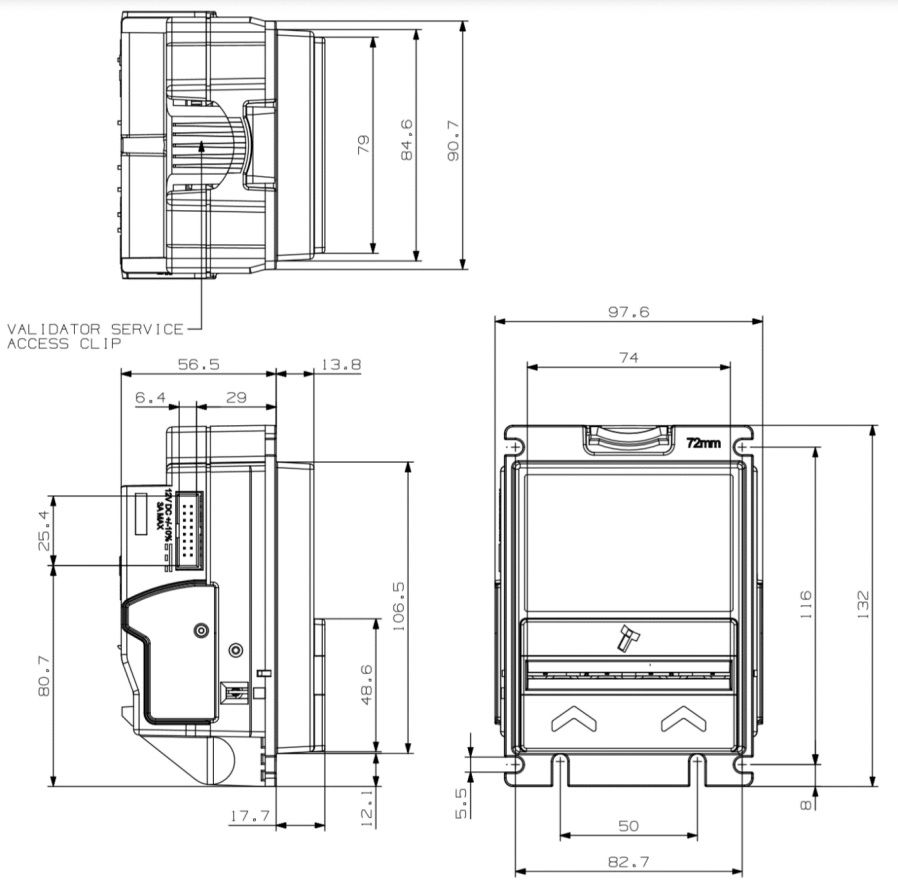

6.Compact dimensions: 110x98x58mm
7.Standard bezel design.
8.Simple and advanced programming tools via configuration card, PC or handheld unit.

Options:
Dataset available on request
Low power mode: Standby time = 3 months
MDB protocol
110V


Bill Acceptor、Spare Parts

Pictures

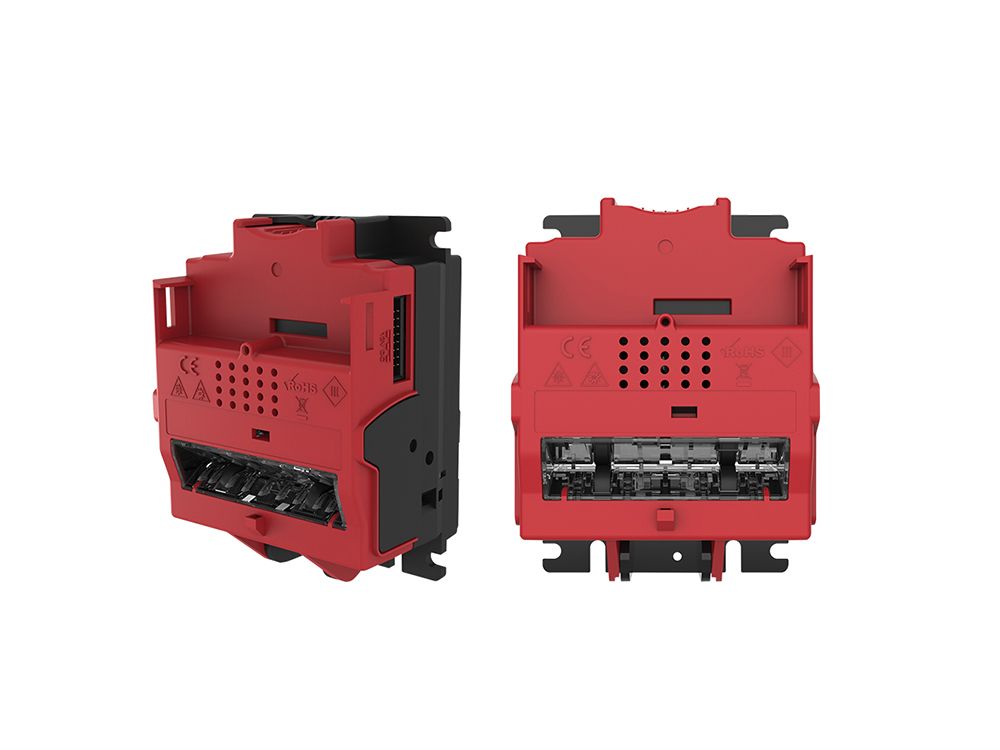

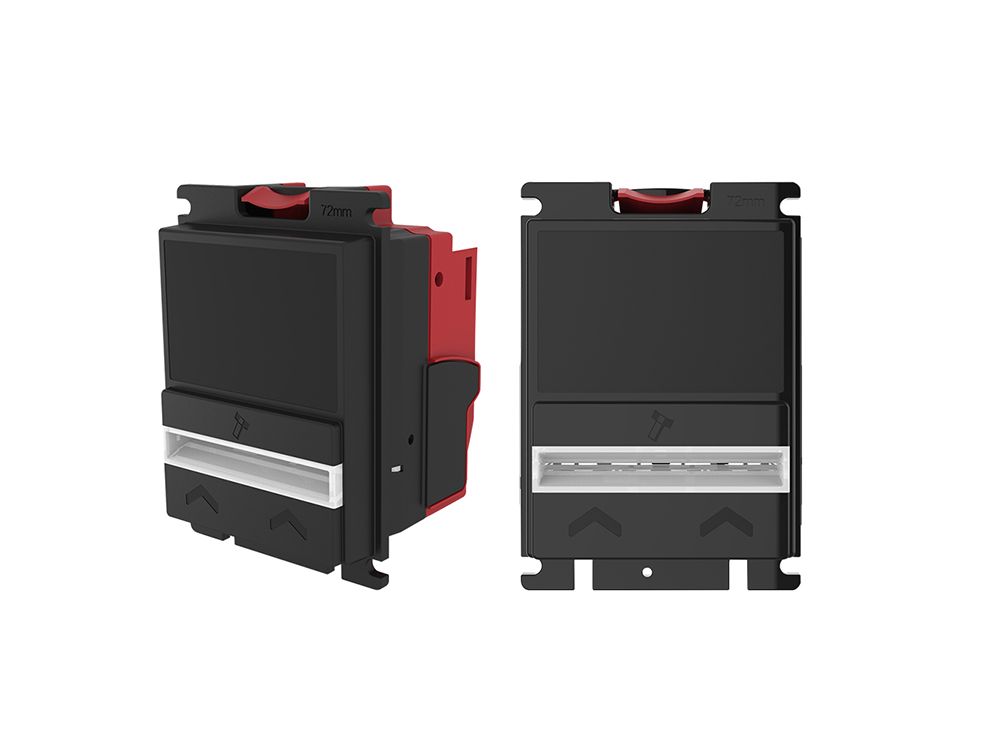

BV20 Bill Acceptor

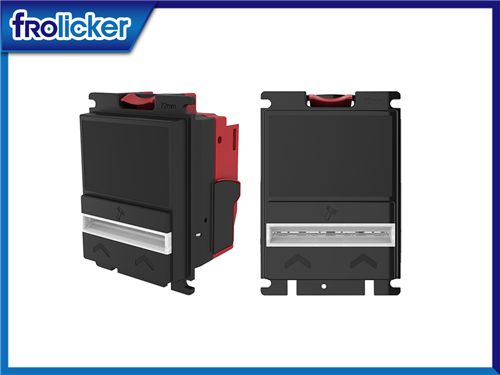

BV20-1 Bill Acceptor/Billetero
