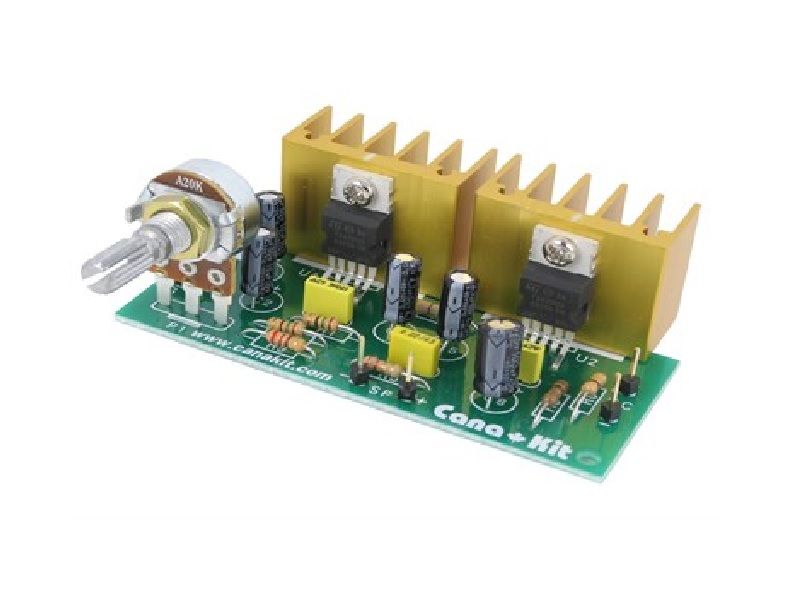

FR-AM20W Amplifier

Supply voltage: 12 to 18V DC / 1 to 2A
Based on two TDA2003 Integrated Circuits
Input sensitivity: 100mV / 20K Ohm
Output power using 18V DC supply:
Music power: > 24W @ 4 Ohm
RMS power: 16W @ 4 Ohm or 12W @ 8 Ohm
Frequency response: 40Hz to 15KHz (-3dB)
Includes two gold-anodized heat sinks
Includes volume control
Dimensions: 3.09" X 1.32"

定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Amplifier、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

FR-AM20W Amplifier
Supply voltage: 12 to 18V DC / 1 to 2A
Based on two TDA2003 Integrated Circuits
Input sensitivity: 100mV / 20K Ohm
Output power using 18V DC supply:
Music power: > 24W @ 4 Ohm
RMS power: 16W @ 4 Ohm or 12W @ 8 Ohm
Frequency response: 40Hz to 15KHz (-3dB)
Includes two gold-anodized heat sinks
Includes volume control
Dimensions: 3.09" X 1.32

Product Description :
This is a compact, yet powerful audio amplifier using two TDA2003 monolithic Integrated Circuits connected in bridged configuration to achieve more output power at 12V DC supply. It can deliver more than 20W of music power into a 4-Ohm speaker and is ideal for any kind of audio amplification application.

Amplifier、Spare Parts

Pictures

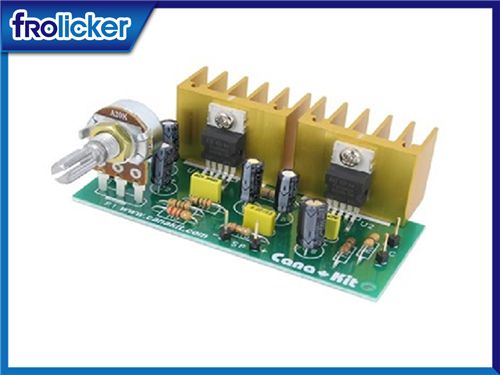

FR-AM20W Amplifier
