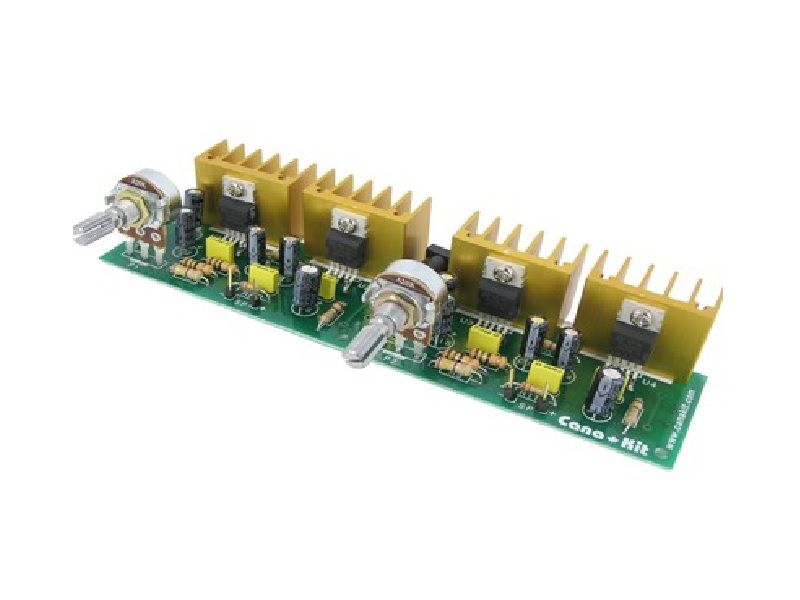

FR-AM40W Amplifier

Supply voltage: 12 to 18V DC / 2 to 4A
Based on four TDA2003 Integrated Circuits
Input sensitivity: 100mV / 20K Ohm
Output power using 18V DC supply:
Music power: > 2 x 24W @ 4 Ohm
RMS power: 2 x 16W @ 4 Ohm or 2 x 12W @ 8 Ohm
Frequency response: 40Hz to 15KHz (-3dB)
Includes four gold-anodized heat sinks
Includes independent left and right volume controls
Dimensions: 6.08" x 1.44"

定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Amplifier、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

FR-AM40W Amplifier
Supply voltage: 12 to 18V DC / 2 to 4A
Based on four TDA2003 Integrated Circuits
Input sensitivity: 100mV / 20K Ohm
Output power using 18V DC supply:
Music power: > 2 x 24W @ 4 Ohm
RMS power: 2 x 16W @ 4 Ohm or 2 x 12W @ 8 Ohm
Frequency response: 40Hz to 15KHz (-3dB)
Includes four gold-anodized heat sinks
Includes independent left and right volume controls
Dimensions: 6.08" x 1.44"

Product Description :
This stereo audio amplifier consists of two separate 20W bridged power amplifiers (one for each channel) based on four TDA2003 monolithic Integrated Circuits connected in bridged configuration to deliver more than 40W of music power into a pair of 4 Ohm speakers. Running on 12V DC, this stereo amplifier is ideal for the car to boost the audio power of older audio systems or to add two more speakers. In addition, it can be connected to any stereo audio source such an iPod, iPhone or any other portable media or MP3 player.


Amplifier、Spare Parts

Pictures

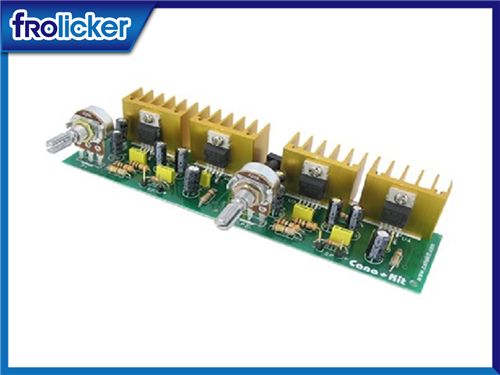

FR-AM40W Amplifier
