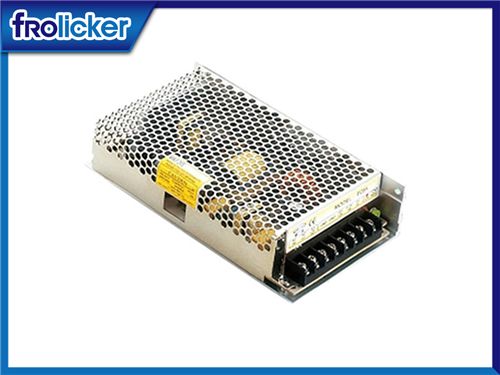

FR-P26 SERIES Power Supply

Dimesion (LxWxH) : 195x110.5x46mm
Weight : 920g (P268), 770kg (Other) / Piece 23.28kgs (P268), 19.28kgs (Other), 24 Purchase / Box



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Power Supply、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

Power Supply、Spare Parts

P26 SERIES OUTPUT VOLTAGE AND CURREN
Dimesion(LxWxH) : 195x110.5x46mm Weight : 920g(P268), 770kg(Other) / Piece 23.28(P268), 19.28kgs(Other), 24 Purchase / Box
MODEL WATT  +5V +12V +24V  -5V -12V CE CUL VAC REMARK
P261XX(UL) 85 17           x 110/220
P262XX(UL) 120   10         x 110/220
P263XX(UL) 120     5       x 110/220
P264XX(UL) 110 12 3   1     x 110/220
P265XX(UL) 110 12 3     1   x 110/220
P266XX(UL) 140   11.5         x 110/220
P267XX(UL) 160     6.5       x 110/220
P268XX(UL) 220 15 4 4       x 110/220 WITH FAN
P261XX(CE) 250 17         x   110/220
P262XX(CE) 85   10       x   110/220
P263XX(CE) 120     5     x   110/220
P264XX(CE) 110 12 3   1   x   110/220
P265XX(CE) 110 12 3     1 x   110/220
P266XX(CE) 140   11.5       x   110/220
P267XX(CE) 160     6.5     x   110/220
P268XX(CE) 220 15 4 4     x   110/220 WITH FAN
P269 220 40 1           110/220 WITH FAN



Pictures

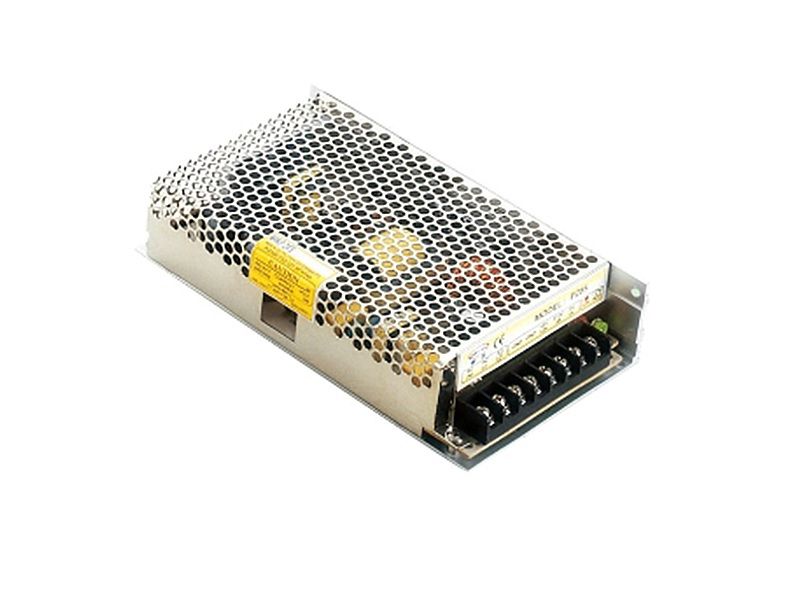

FR-P26 SERIES Power Supply
