FR-P20 SERIES Power Supply

Dimesion (LxWxH) : 150x153x86mm
Weight : 800g (Fuse), 1.23kg (Break) / Piece 10.4kgs (Fuse), 15.56kgs (Break) 12 Purchase / Box



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Power Supply、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

Power Supply、Spare Parts

P20 SERIES OUTPUT VOLTAGE AND CURRENT
Dimesion(LxWxH) : 150x153x86mm Weight : 800g(Fuse). 1.23kg(break)/Piece 10.4kgs(Fuse), 15.56kgs(Break) 12 Purchase/Box
MODEL WATT +5V +12V -5V  -12V CE CUL VAC REMARK
P2010X(UL) 150 18 4 0.5 0.5   X 110 FUSE
P2020X(UL) 200 20 8 0.5 0.5   X 110 FUSE
P2030X(UL) 250 25 10 0.5 0.5   X 110 FUSE
P2011X(UL) 150 18 4 0.5 0.5   X 110 BREAK
P2021X(UL) 200 20 8 0.5 0.5   X 110 BREAK
P2031X(UL) 250 25 10 0.5 0.5   X 110 BREAK
P2010X(CE) 150 18 4 0.5 0.5 X   110/220 FUSE
P2020X(CE) 200 20 8 0.5 0.5 X   110/220 FUSE
P2030X(CE) 250 25 10 0.5 0.5 X   110/220 FUSE
P2011X(CE) 150 18 4 0.5 0.5 X   110/220 BREAK
P2021X(CE) 200 20 8 0.5 0.5 X   110/220 BREAK
P0231X(CE) 250 25 10 0.5 0.5 X   110/220 BREAK



Pictures

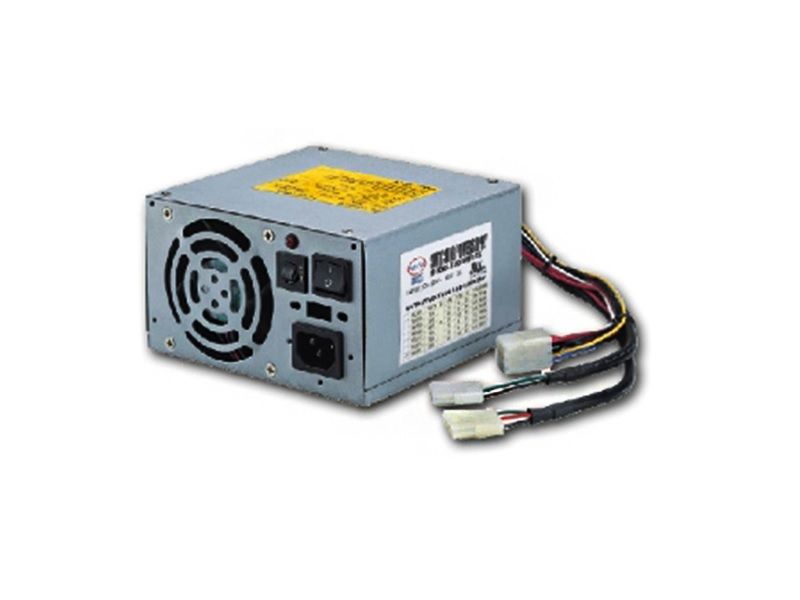

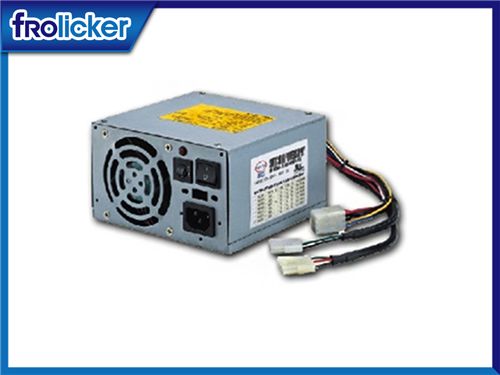

FR-P20 SERIES Power Supply
