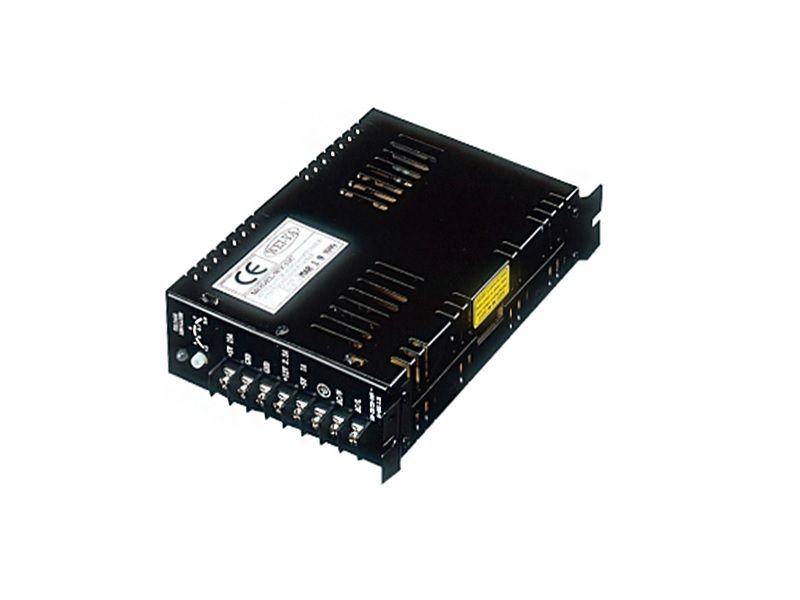

FR-P15 SERIES Power Supply

Dimesion (LxWxH) : 188x130x54mm
Weight : 720g(P15D), 640g (Other)/Pice 18.28kgs (P15D), 16.36kgs (Other) 24 Purchase / Box



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

Power Supply、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

Power Supply、Spare Parts

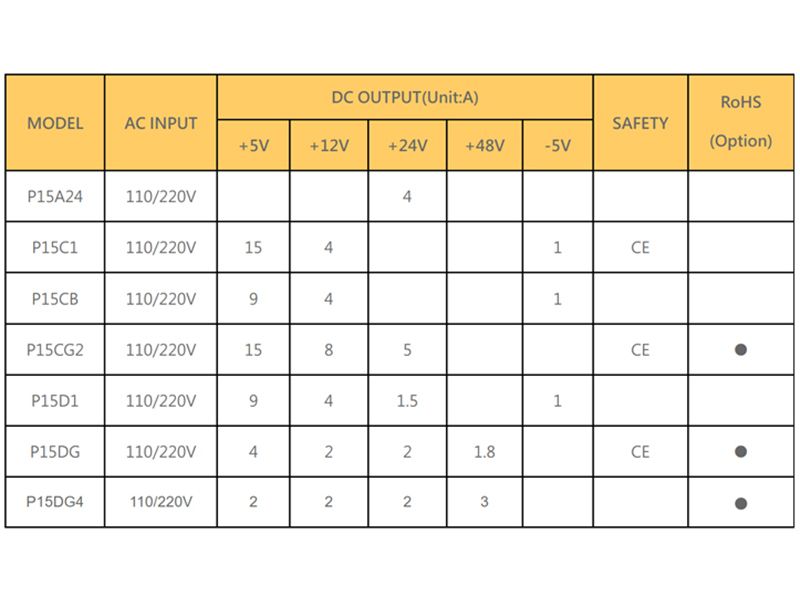

P15 SERIES OUTPUT VOLTAGE AND CURRENT
Dimesion(LxWxH) : 188x130x54mm Weight : 720g(P15D). 640g (Other)/Pice 18.28kgs (Other) 24 Purchase / Box
MODE WATT +5V +12V +24V +48 -5V -12V CE CUL VAC REMARK
P15C(P15C) 110 15 2.5     1   X X 110/220 R/G LED
P15C1(P15C1) 130 15 4     1   X   110/220 R/G LED
P15C(P15C1) 105 9 2 1.5       X   110/220 R/G LED
P15C(P15CA1) 130 9 4 1.5       X   110/220 R/G LED
P15D(P15D) 180 4 2 2 1.8     X   110/220
P15A24(P15A24) 100     4           110/220
P15CF(P15CF) 170 20 5     2   X   110/220 WITH FAN
P15CF1(P15CF1) V135 15 4   1   1     110/220



Pictures

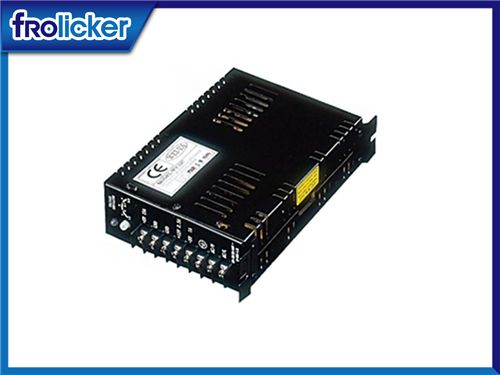

FR-P15 SERIES Power Supply
