AC-600A AC Switch

Characteristics :
1. Contact R : 50mΩ Max
2. Insulation R : DC 500V 100mΩ Min
3. Dielectric Strength : AC 1500V 1Minute
4. Mechanical liff : 30000 Times Min
5. Electric Life : 10000 Times Min



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

AC Switch、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine



AC Switch、Spare Parts

ILLUMINATED ROCKER SWITCH
CHARACTERISTICS
 • Contact R : 500mΩ MAX
 • Insulation R : DC 500V 100mΩ MIN
 • Dielectric Strength : AC 100V 1MINUTE
 • Mechanical Life : 30,000 Times Min
 • Electric Life : 10,000 Times Min



FEATURES
1.Fasten terminal only.
2.Available in DPST, DPDT.
3.Color of housing & Button are available.



USES
1.In equipment for office automation equipment household appliances & Electronic devices.
2.In peripheral equipment for electronic computers.




SWITCH NO. TERMINAL CIRCUIT RATING
  125VAC 250VAC 12VDC
AC 600A-4P-ON-OFF FASTEN DPST 16A,1/8HP 10A,1/3HP 20A
AC 600A-4P-ON-OFF
(ILLUMINATED)
FASTEN DPST 16A,1/8HP 10A,1/3HP 20A
AC 600A-4P-ON-ON FASTEN DPST 16A,1/8HP 10A,1/3HP 20A
AC 600A-4P-ON-ON
(ILLUMINATED)
FASTEN DPST 16A,1/8HP 10A,1/3HP 20A



You can choose what color you want colors of Housing & Button are as belows.
Colors Code : W. White  B. Black
1.Yellow  2.Red  3.Blue  4.Green

COLORS CODE HOUSING BUTTON
W (W) (W)
W1 (W) (1)
W2 (W) (2)
W3 (W) (3)
W4 (W) (4)
W5 (W) (B)
W6 (B) (B)
W7 (B) (1)
W8 (B) (2)
W9 (B) (3)
W10 (B) (4)
W11 (B) (W)



Pictures

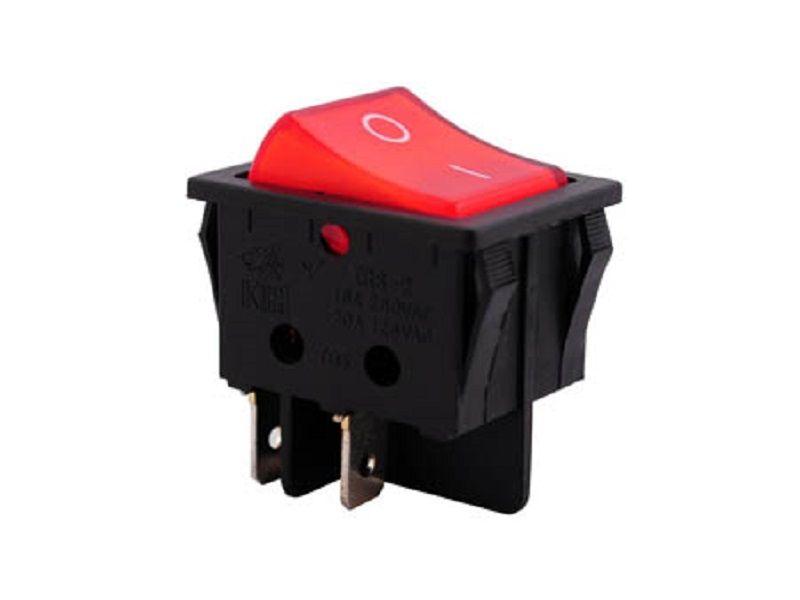

AC-600A AC Switch
