AC-600AS AC Switch


Characteristics :
1. Contact R : 50mΩ Max
2. Insulation R : DC 500V 100mΩ Min
3. Dielectric Strength : AC 1500V 1Minute
4. Mechanical liff : 30000 Times Min
5. Electric Life : 10000 Times Min



定價:NT.0
原價:NT.0

Spec

Quantity

Inquiry

Introduction

AC Switch、Spare Parts|Frolicker-Slot Games 正翔企業

Frolicker make high quality PC boards and Locks,Button,Joystick,Hopper,Power Supply,Game PCB,Slot game,Simulator,Converter,Vending Machine

Service : Locks,Button,Joystick,Hopper ,Power Supply,Slot games,Simulator, Micro Switch,Bill Acceptor,Coin Selector,Converter,Vending Machine

AC Switch、Spare Parts



ILLUMINATED ROCKER SWITCH
CHARACTERISTICS
 • Contact R : 500mΩ MAX
 • Insulation R : DC 500V 100mΩ MIN
 • Dielectric Strength : AC 1500V 1MINUTE
 • Mechanical Life : 30,000 Times Min
 • Electric Life : 10,000 Times Min



FEATURES
1.Fasten terminal only.
2.Available in DPST, DPDT.
3.Color of housing & Button are available.



USES
1.In equipment for office automation equipment household appliances & Electronic devices.
2.In peripheral equipment for electronic computers.



SWITCH NO. TERMINAL CIRCUIT RATING
  125VAC 250VAC 12VDC
AC 600AS-3P-ON-OFF-L
(ILLUMINATED)
FASTEN SPST 16A,1/8HP 10A,1/3HP 20A
AC 600AS-2P-ON-OFF FASTEN SPST 16A,1/8HP 10A,1/3HP 20A
AC 600AS-3P-ON-ON FASTEN SPST 16A,1/8HP 10A,1/3HP 20A
With 220V, 100V NEON LAMP 12V BULB



You can choose what color you want colors of Housing & Button are as belows.
Colors Code : W. White  B. Black
1.Yellow  2.Red  3.Blue  4.Green

COLORS CODE HOUSING BUTTON
W1 (W) (1)
W2 (W) (2)
W3 (W) (3)
W4 (W) (4)
B1 (B) (1)
B2 (B) (2)
B3 (B) (3)
B4 (B) (4)



Pictures

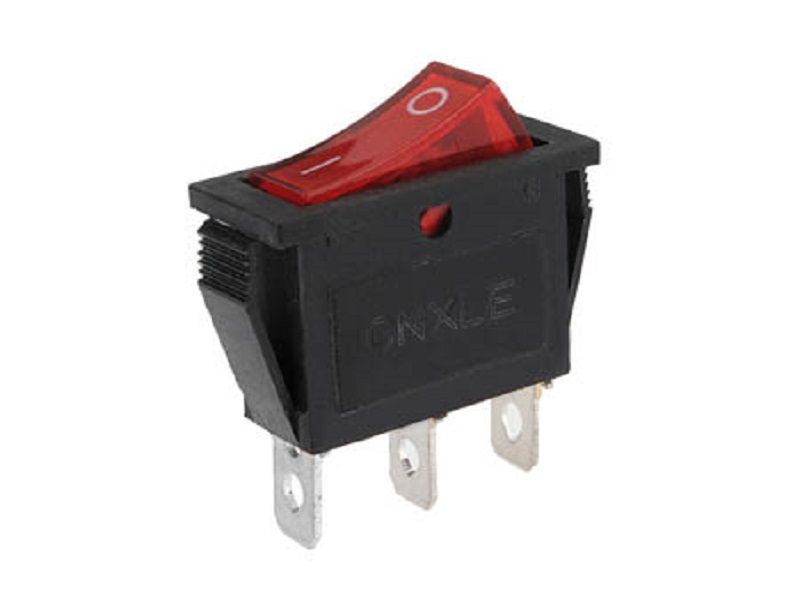

AC-600AS AC Switch
